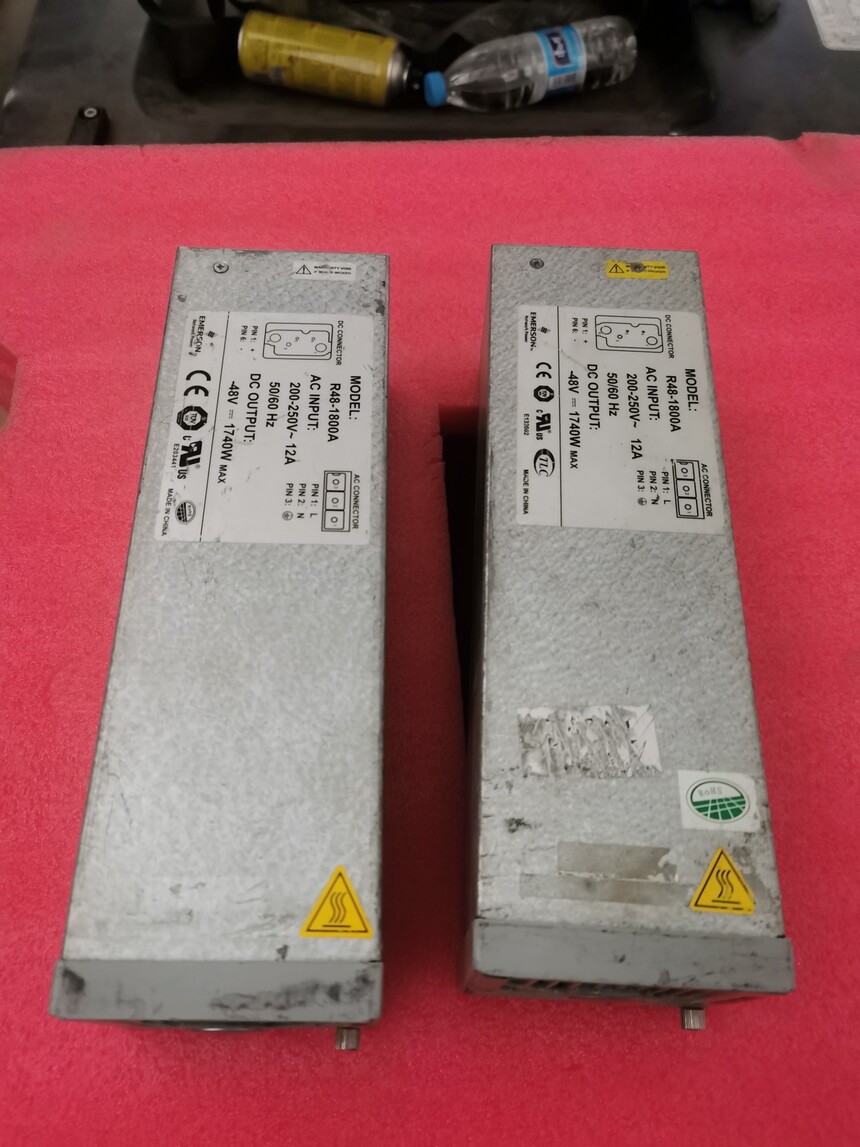

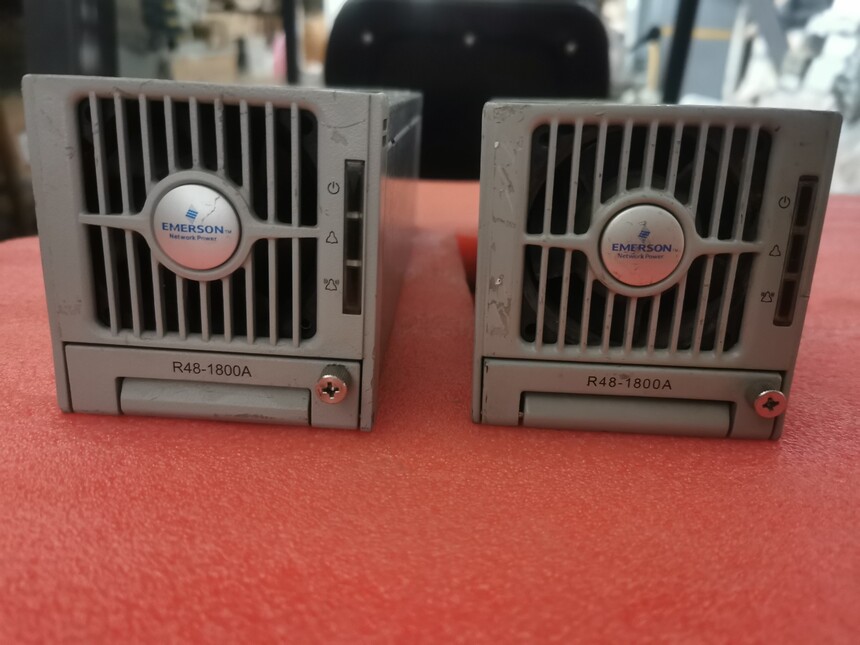

艾默生R48-1800A功能和特点
　　1.热插拔
　　整流模块采用无损伤热插拔技术，其输出和输入都有软启动单元，当模块插入系统时，不会引起系统输出电压的扰动。更换模块时间小于1分钟。
　　2.数字化均流
　　整流模块采用先进的数字化均流技术，无需监控模块，整流模块间可以自动均流，均流不平衡度小于±3%。
　　3.输入限功率控制
　　整流模块根据输入电压和输出电压的变化，采用先进的限功率控制方法。转换点在176V(回差小于2V)。当输入电压在176Vac～300Vac时，模块可以输出*功率;当输入电压在85Vac～176Vac时，使其在低输入电压时既保证*负载需求，又能保证模块的可靠工作，其输出功率与输入电压的关系
　　45℃时，输出功率与输入电压关系说明：
　　176Vac输入，模块*输出功率为***额定功率，即1740W;
　　110Vac输入，模块*输出功率为50%额定功率，即1050W;
　　85Vac输入，模块*输出功率为44.4%额定功率，即800W。、

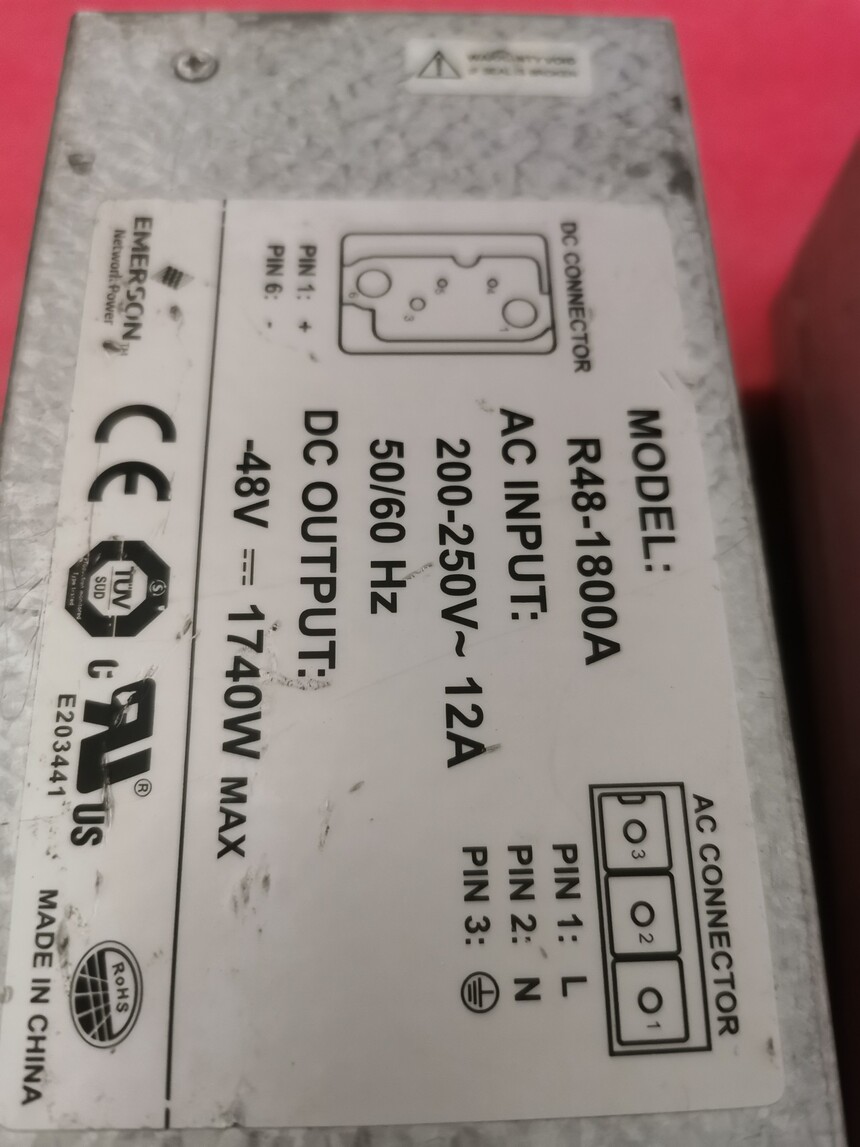

　　艾默生R48-1800A技术参数
　　艾默生R48-1800A整流模块技术参数表
　　参数类别参数名称数值
　　环境条件工作温度-40℃～70℃
　　贮存温度-40℃～70℃
　　相对湿度≤90%RH，无冷凝
　　海拔高度-200m～1800m。海拔高度2000m以上降额使用
　　冷却方式强迫风冷
　　交流输入输入电压制式单相三线制
　　输入电压范围85Vac～300Vac
　　额定输入电压200Vac～250Vac
　　功率降额输入电压范围85Vac～176Vac
　　不工作承受*静态电压415Vac
　　额定输入电流<9A@1740W
　　*输入电流<12A@1740W/176Vac
　　输入冲击电流≤17A
　　允许输入电网频率45Hz～65Hz
　　额定输入电网频率50Hz/ 60Hz
　　直流输出输出直流电压范围42V～58V
　　输出直流电流0A～33A
　　艾默生R48-1800A稳压精度<±0.5%
　　负载调整率≤±0.5%
　　电压调整率≤±0.1%
　　开机启动冲击电流≤17A
　　输出限流特性无级限流，限流点0A～33A(可以通过监控单元调节)，限流精度≤±1A(42V～58V)
　　功率因数和THD功率因数>0.90 @25%～50%额定输出功率
　　>0.98 @50%～***额定输出功率
　　>0.99 @***额定输出功率
　　THD<5% @50%～***额定输出功率
　　杂音指标峰-峰值杂音≤100mV(0Hz～20MHz) 参考标准：YD/T7314.4.3.4
　　电话衡重杂音≤2mV 参考标准：YD/T731_2002 4.4.3.1
　　宽频杂音≤50mV(3.4kHz～150kHz) 参考标准：YD/T731_2002 4.4.3.2
　　≤20mV(150kHz～30MHz) 参考标准：YD/T731_2002 4.4.3.2
　　<20mV(25Hz～20kHz) 参考标准：ETS300132-2.V2.12 4.9.2
　　离散杂音≤5mV(3.4kHz～150kHz) 参考标准：YD/T731 4.4.3.3
　　≤3mV(150kHz～200kHz) 参考标准：YD/T731 4.4.3.3
　　≤2mV(200kHz～500kHz) 参考标准：YD/T731 4.4.3.3
　　≤1mV(0.5MHz～30MHz) 参考标准：YD/T731 4.4.3.3
　　窄带杂音≤100mV(10Hz～20MHz) 参考标准：EN300132
　　EMC指标浪涌输入：±4kV/2Ω，±6kV/12Ω;输出：800V/2Ω 参考标准：EN61000-4-5
　　R4-8，R4-9，R4-24，R4-25 参考标准：GR-1089-CORE
　　EFT输入和输出：4kV;信号线：1kV 参考标准：EN 61000-4-4
　　O2-8 参考标准：GR-1089-CORE
　　ESD8kV/15kV 参考标准：EN 61000-4-2
　　R2-1，R2-2，R2-3，O2-4，R2-5 参考标准：GR-1089-CORE
　　传导抗扰3Vrms，0.15-80MHz 参考标准：EN 61000-4-6
　　R3-15，CO3-16，R3-17 参考标准：GR-1089-CORE
　　辐射抗扰10V，0.08-1GHz 参考标准：EN 61000-4-3
　　R3-1，CR3-4 参考标准：GR-1089-CORE
　　EMC指标电压暂降、中断和缓变抗扰性参考标准：EN61000-4-11
　　输入谐波电流发射A类设备限值 参考标准：EN61000-3-2
　　工频磁场30A/m 参考标准：EN 61000-4-8
　　输入电压波动及闪烁参考标准：EN61000-3-3
　　传导发射Class A(直流侧) 参考标准：EN300386:2001
　　Class A(直流侧) 参考标准：EN55022
　　Class B(交流测) 参考标准：EN55022
　　O3-7 参考标准：GR-1089-CORE
　　辐射发射Class B 参考标准：EN300 386: 2001
　　R3-1，R3-4(Class B) 参考标准：GR-1089-CORE
　　安全规范安全标准UL/ EN/ IEC 60950-2000
　　安规要求UL/ CE/ NEBS
　　保护特性过流保护输入/输出过流保护(采用保险丝)。短路保护
　　过欠压保护输入欠压保护点：80±5V，回差≥15Vac
　　输入过压保护点：305V±5V，回差≥10Vac
　　输出过压硬件保护点：59.0V±0.5V
　　输出过压软件保护点：56V～59V(通过监控模块可调)
　　过温保护98℃，模块关机，温度回差10℃
　　其它效率>91%
　　均流模块电流均流误差±0.9A内
　　温度系数(1/℃)0.01%
　　动态响应当负载按50%～25%～50%或50%～75%～50%进行阶跃变化时，响应时间≤200ms，超调量≤5%
　　启动时间(通过监控模块选择开机模式)正常开机模式：从交流上电到模块输出的时间延迟小于5秒
　　输出缓起：启动时间可以通过监控模块设置，可设范围8s～124s，精度≤±10%
　　保持时间>10ms(输出从54V降到42V)
　　噪声在周围环境温度为25℃时，不大于50dB(A)(离开0.6m处)
　　浪涌保护满足IEEE C62.41-1991B3等级，6kV/3kA(1.2/50ms冲击电压和8/20ms冲击电流混合波)
　　散热方式风扇采用无级温控调速，随温度升高而加快
　　绝缘电阻直流部分、交流部分对外壳之间以及交流部分对直流部分之间的绝缘电阻≥5MΩ(试验电压500Vdc)
　　绝缘强度交流输入端子对壳体2121V直流电压1分钟，无击穿，无飞弧现象，稳态漏电流小于1mA。
　　交流输入端子对直流输出端子4242V直流电压1分钟，无击穿，无飞弧现象， 稳态漏电流小于1mA。
　　直流输出端子对壳体707V直流电压1分钟，无击穿，无飞弧现象，稳态漏电流小于1mA。
　　MTBF≥12年
