维蒂EPC48200/2900-HA41室外柜，通信电源室外机柜室外一体化电源机柜

维蒂EPC48200/2900-HA41室外柜，通信电源室外机柜室外一体化电源机柜

艾默生EPC48120/1800、EPC48150/2900、EPC48200/2900 Viti 48V户外综合通信电源柜
艾默生户外综合柜、Viti户外综合柜，艾默生通信电源、Viti通信电源
EPC48120/1800、EPC48150/2900、EPC48200/2900户外通信电源系统介绍EPC户外通信电源供应系统是艾默生在多年的通信电源和户外机柜研发设计基础上推出的一款户外综合通信电源解决方案。
机柜尺寸600（宽）mm×610（深）mm×1030（高）mm，无电池舱，电池舱尺寸560（宽）毫米×560（深）毫米×330（高）毫米，2层，集成机柜，集成机柜≤110Kg，重量拆分机柜≤70Kg
机械参数集成柜600（宽）mm×610（深）mm×1800（高）mm
机柜分为集成机柜和分体机柜，主要由整流模块、监控模块、交直流配电单元、防雷系统、温控系统、防盗系统、电池舱、用户设备舱等组成，并与艾默生太阳能控制器兼容。
该系统集成了节能睡眠功能，支持高效混合插入功能，符合通信行业节能环保、绿色低碳的建设理念。
应用■ 室外通信基站■ 室外通信接入点■ 室外供电通信局站
系统特点集成解决方案：该系统集成了整流模块、监控模块、交直流配电单元、防雷系统、温控系统、电池舱、用户设备舱等。此外，还保留了太阳能接入端口，可以实现一体化、快速的站点建设。根据环境温度，可分为南方型（A/C）和北方型（B/D）；
根据机柜的尺寸，可分为：集成机柜（A/B）、分体机柜（C/D）和柔性安装。该机柜占地面积小，适用于安装在屋顶/地面平台、H柱安装、塔式平台安装等。维护简单。采用全前端维护，模块支持在线热插拔。高防护设计：
设备舱的防护等级为IP55，而电池舱的防护级别为IP45。它隔离了室外的不利因素，确保了设备的安全运行。模块化设计：系统可以灵活升级和扩展，通过模块的添加和删除，快速满足客户的定制需求。节能和睡眠功能：
该系统集成了节能睡眠专利技术，在保证模块寿命的同时，有效降低系统能耗。高效的混合动力技术应用：
系统支持普通模块和高效模块的混合插入功能，提高了系统效率，降低了系统能耗。无级调速设计：
系统风机采用无级线速度控制设计，最大限度地降低功耗，延长风机使用寿命。该系统在交流侧、直流侧和信号侧提供全面的防雷保护。电池管理：完整的电池管理功能，可选电池仓，独立温控，通过RS232和以太网等智能接口有效延长电池寿命，可实现本地和远程联网灵活性：系统具有干节点、RS 422、集成机柜（A/B）、分体机柜（C/D）过程监控管理，和光电互补电源：与艾默生太阳能控制器兼容，可形成光电互补电源系统
系统设置
产品型号EPC48120/1800-HA（B/C/D）4 EPC48150/2900 HA（B/C/D）4 EPC48200/2900 HA
系统容量120A 150A 200A
整流器模块R48-1800A、R48-2000e R48-2900U、R48-3200e R48-2900 U、R48-2200e
监测模块M521S M521S M5 21S
交流输入：1×63A/2P交流输入：1
交流输出：10A插座，+16A断路器保护交流输出：10A插座，+116A断路器保护交流电输出：10A插头，+16A熔断器保护
1个加热器控制输出（北方型）1个加热器控制器输出（北方式）1个加热控制器输出（南方式）
电池连接2×63A/1P 2×63A/1P 2？25A/1P
负载下：2×63A/1P，2×32A/1P负载掉电：2×63 A/1P；2×32A/1P负载下电：2？3A/1P，2？0A/1P，1？2A/1P
直流配电电池掉电：2×16A/1P电池掉电；2×16A/1P电池断电：1×32A/1P，1×

Emerson EPC48120/1800, EPC48150/2900, EPC48200/2900 Viti 48V outdoor integrated communication power supply cabinet
Emerson outdoor integrated cabinet, Viti outdoor integrated cabinet, Emerson communication power supply, Viti communication power supply
Introduction to EPC48120/1800, EPC48150/2900, and EPC48200/2900 Outdoor Communication Power Supply Systems EPC Outdoor Communication Power Supply System is an integrated communication power supply solution for outdoor use launched by Emerson based on years of research and development and design of communication power supplies and outdoor cabinets.
Cabinet size 600 (width) mm × 610 (deep) mm × 1030 (height) mm, no battery compartment, battery compartment size 560 (width) mm × 560 (deep) mm × 330 (high) mm, 2 layers, integrated cabinet, integrated cabinet ≤ 110Kg, weight split cabinet ≤ 70Kg
Mechanical parameter integrated cabinet 600 (width) mm × 610 (deep) mm × 1800 (high) mm

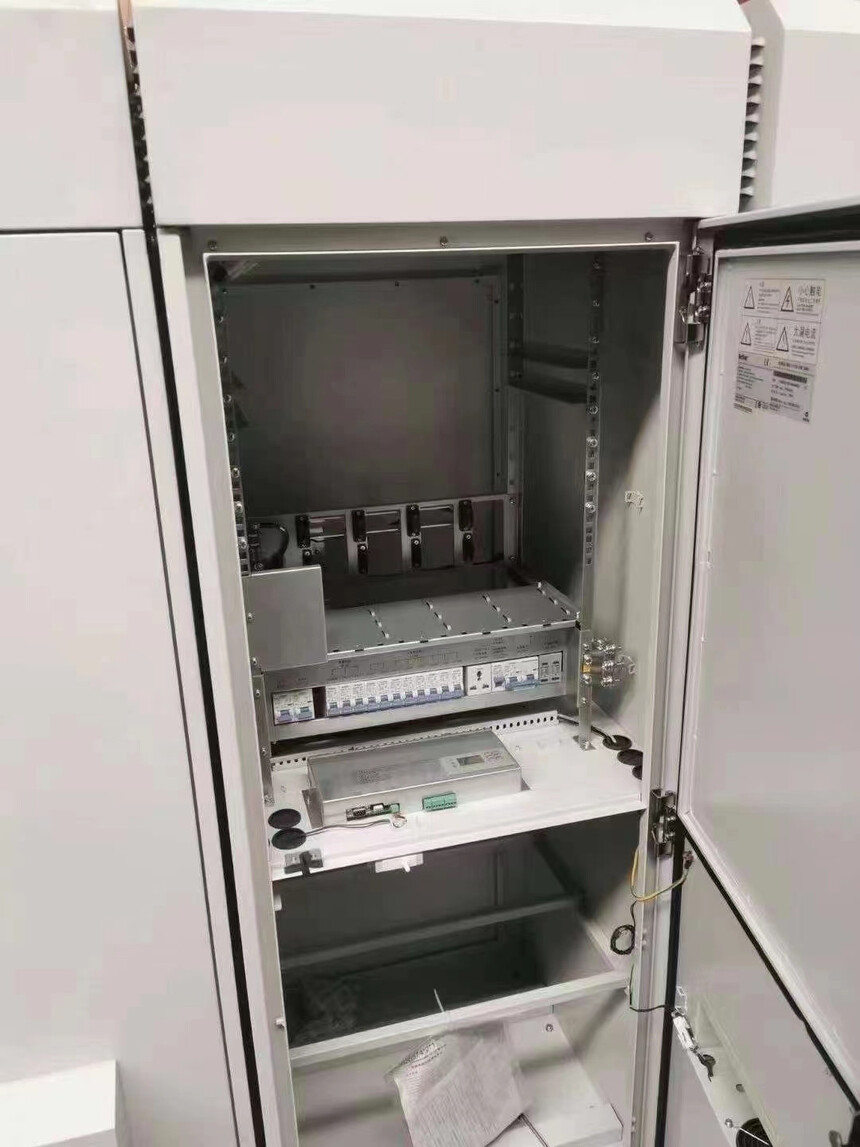

The cabinet is divided into an integrated cabinet and a split cabinet, mainly composed of rectifier module, monitoring module, AC/DC distribution unit, lightning protection system, temperature control system, anti-theft system, battery compartment, user equipment compartment, etc., and is compatible with Emerson solar controller.
The system integrates energy-saving sleep function, supports efficient hybrid insertion function, and meets the construction concept of energy conservation, environmental protection, green and low-carbon in the communication industry.
Application ■ Outdoor communication base station ■ Outdoor communication access point ■ Outdoor power supply communication bureau station
System Features Integrated Solution: The system integrates rectifier modules, monitoring modules, AC/DC distribution units, lightning protection systems, temperature control systems, battery compartments, user equipment compartments, etc. In addition, there are reserved solar energy access ports, which can achieve integrated and rapid station construction. According to environmental temperature, it can be divided into southern type (A/C) and northern type (B/D);
According to the size of the cabinet, it can be divided into: integrated cabinet (A/B), split cabinet (C/D), and flexible installation. The cabinet occupies a small area and is suitable for installation on rooftop/ground platforms, H-pole installation, tower platform installation, etc. Maintenance is simple. Full front maintenance is adopted, and the module supports online hot swapping. High protection design:
The equipment compartment has an IP55 protection level, while the battery compartment has an IP45 protection level. It isolates outdoor adverse factors and ensures safe operation of the equipment. Modular design: The system can flexibly upgrade and expand, and quickly meet customers' customized needs through module additions and deletions. Energy saving and sleep function:
The system integrates energy-saving sleep patented technology, ensuring module life while effectively reducing system energy consumption. Efficient hybrid technology application:
The system supports the mixed insertion function of ordinary and efficient modules, improving system efficiency and reducing system energy consumption. Stepless speed regulation design:
The system fan adopts a stepless linear speed control design to minimize power consumption and extend the service life of the fan. The system provides comprehensive lightning protection on the AC side, DC side, and signal side. Battery management: complete battery management function, optional battery compartment with separate temperature control, effectively extending the battery life through intelligent interfaces such as RS232 and Ethernet, Can achieve local and remote networking flexibility: the system has dry nodes, RS 422, integrated cabinet (A/B), split cabinet (C/D) process monitoring management, and optoelectronic complementary power supply: compatible with Emerson solar controllers, can form an optoelectronic complementary power supply system
System settings
Product model EPC48120/1800-HA (B/C/D) 4 EPC48150/2900 HA (B/C/D) 4 EPC48200/2900 HA (B/C/D) 4
System capacity 120A 150A 200A
Rectifier modules R48-1800A, R48-2000e R48-2900U, R48-3200e R48-2900U, R48-3200e
Monitoring module M521S M521S M521S
AC input: 1 × 63A/2P AC input: 1 × 63A/2P AC input: 1 × 100A/2P AC power distribution
AC output: 10A socket,+16A circuit breaker protection AC output: 10A socket,+16A circuit breaker protection AC output: 10A socket,+16A circuit breaker protection
1 heater control output (northern type) 1 heater control output (northern type) 1 heater control output (northern type)
Battery connection 2 × 63A/1P                         2 × 63A/1P                          2 × 125A/1P
Under load: 2 × 63A/1P，2 × 32A/1P load power down: 2 × 63A/1P，2 × 32A/1P load power down: 2 × 63A/1P，2 × 50A/1P，1 × 32A/1P
DC distribution battery power down: 2 × 16A/1P battery power down: 2 × 16A/1P battery powered down: 1 × 32A/1P，1 × 16A/1P
User space 9U 8U 8U
Temperature control method: heat exchanger heat dissipation options: solar controller, anti-theft monitoring component, DC remote supply terminal plug-in frame, inverter electrical parameter system parameter description: working temperature -10 ℃ -+45 ℃ (southern type), -40 ℃ -+45 ℃ (northern type) storage temperature -45 ℃ -+70 ℃ relative humidity 5% RH -100% RH altitude ≤ 2000m (exceeding the required derating)
Input voltage range 85Vac~300Vac Input frequency 45Hz~65Hz Power factor ≥ 0.99 Output voltage range 42Vdc~58Vdc System efficiency ≥ 92% AC lightning protection Level C lightning protection: In=20kA, Im=40kA DC lightning protection DC side lightning protection: In=15kA
