NetSure201C46集成壁挂式电源系统是艾默生网络能源公司凭借多年的开发和在线运营经验设计的一种高可靠性、高功率密度、高性能、全数字化的通信电源系统，以满足BBU和RRU电源室内覆盖、FTTx集成接入点，以及其他网络需求。
交流配电单相三线制参数80~300Vac电源模式输入电压输入空气开关63A/2P×1。防雷等级C技术指标解析：绿色基站相电压电源解决方案
系统特性
采用内置电池的集成设计，节省了机房空间，体积小。它可以直接安装在墙上，节省了机房的面积和安装成本。全正面操作，便于维护和安装。安装方式灵活，可以壁挂安装，也可以落地安装。输入电压范围宽（80-300Vac），电网适应性强。整流模块工作温度范围广（-40～+75℃），环境适应性强。整流模块采用数字DSP控制技术，功率密度高达18.9W/In3及以上，无损热插拔，在线维护，方便快捷，具有全面的防雷设计，提供多个直流配电输出，具有综合的电池管理功能，有效提高了电池的使用寿命。提供RS232、网络端口、干连接点等多种通信接口，组网灵活。它可以通过整流模块ID号识别功能实现远程监控，通过CE、UL
TLC等相关的直流配电参数、输出电压、总负载容量、电池空气开关输出等国内外认证，方便用户资产的管理，并联内置电池容量技术指标-42~-58Vdc80A63A×250A×1,16A×4,10A×240Ah@48Vdc解释80A@48Vdc电池保护，空气开关可内置1套
NetSure201C46卓越的节能环保功能
节能：休眠节能专利技术，有效降低综合运营成本。节省土地：内置电池，正面全方位维护
环境保护：符合欧盟RoHS标准和中国环境指令，而EMC符合EN55022ClassB
The
NetSure201C46 integrated wall mounted power supply system is a highly
reliable, high-power density, high-performance, and fully digital
communication power supply system designed by Emerson Network Energy
with years of development and online operation experience to meet the
network requirements of indoor coverage of BBU and RRU power supply,
FTTx integrated access points, and other network needs.
AC
distribution single-phase three wire parameters 80~300Vac power supply
mode input voltage input air switch 63A/2P × 1. Explanation of Lightning
Protection Level C Technical Indicators: Phase Voltage Power Solution
for Green Base Stations
System characteristics
Adopting an
integrated design with built-in batteries, it saves space in the
computer room and has a small volume. It can be directly installed on
the wall, saving the area and installation cost of the computer room.
Full frontal operation is convenient for maintenance and installation.
The installation method is flexible, and can be wall mounted or floor
mounted. The input voltage range is wide (80-300Vac), and the power grid
has strong adaptability. The rectifier module has a wide working
temperature range (-40~+75 ℃), and has strong environmental

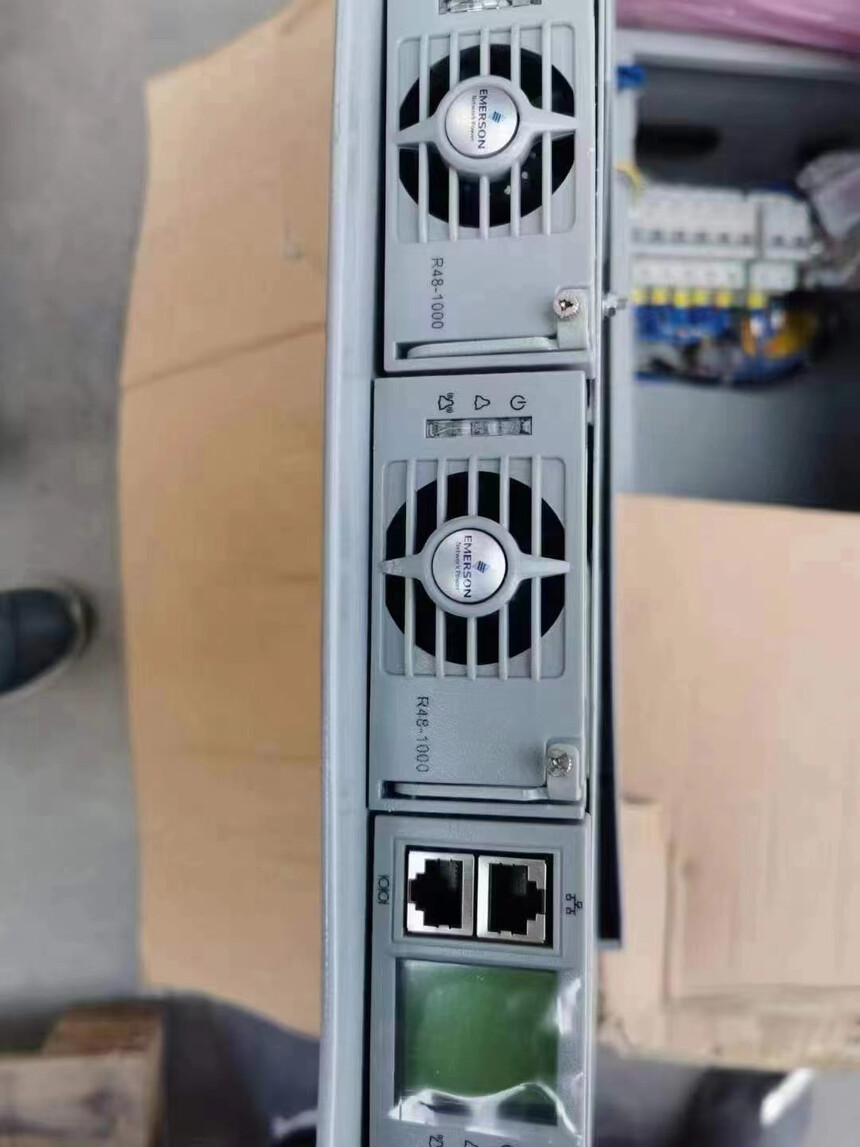

adaptability. The rectifier module adopts digital DSP control
technology, With a power density of up to 18.9W/In3 and above,
non-destructive hot swapping, online maintenance, convenient and fast
with comprehensive lightning protection design, providing multiple DC
power distribution outputs with comprehensive battery management
functions, effectively improving the service life of the battery. It
provides multiple communication interfaces such as RS232, network port,
and dry connection point, and is flexible in networking. It can achieve
remote monitoring with rectification module ID number recognition
function, facilitating the management of user assets through CE, UL TLC
and other related domestic and international certifications for DC
distribution parameters, output voltage, total load capacity, battery
air switch output, shunt built-in battery capacity technical indicators
-42~-58Vdc80A63A × 250A × 1，16A × 4，10A × 240Ah@48Vdc explain 80A@48Vdc
Battery protection, air switch can be built-in with 1 set
NetSure201C46's outstanding energy-saving and environmental protection features
Energy
saving: dormant energy-saving patented technology, effectively reducing
comprehensive operating costs. Land saving: built-in battery, full
frontal maintenance
Environmental protection: meets EU RoHS standards and Chinese environmental directives, while EMC meets EN55022ClassB
