艾默生NetSure701A41应用范围：户外机柜、宏站电源、3G室内覆盖电源、宽带综合接入电源。艾默生NetSure701A41机械参数结构：宽19英寸，高6U；尺寸（mm）：483（宽）×360（深）×267（高）；重量（Kg）：25（不包括整流器模块和模块）。
NETSURE701 A41标称输出电压：-48V，标称输出电流：200A或250A。该系统可以适应广泛的交流输入，并具有智能电池管理和远程环境等功能。艾默生NetSure701 A41嵌入式通信电源是一种6U高设计的箱式电源，主要由50A整流模块、模块、嵌入式子机架和配电电路组成。它支持多种安装方式，如标准的19英寸机架或嵌入式机柜安装
艾默生NetSure701A41模块M221S：液晶显示器，带以太网端口，RS232；M222S：液晶显示器，无网络端口，RS232。报警功能：对单个系统故障提供声光报警，同时向后端主机报告。历史报警记录可以存储200个条目，并具有按钮操作记录功能。3个开关输入；4路开关值报警输出，可扩展至8路开关值警报输出。警报的声音和时间是可控的。电池管理功能：自动浮充、智能充电限流管理、电池保护。放电测试，10组电池测试记录，三种充电方式：定时、快速、恒流。控制功能：整流模块开/关、整流模块限流、均流、电压调节；电池组均衡/浮动充电/测试转换，电池保护。四种远程功能：远程信号、远程控制、遥测和远程调节。节能功能（可选）：模块自动休眠功能，高效-普通模块混插。
Emerson NetSure701A41 application scope: outdoor cabinet, macro station power supply, 3G indoor coverage power supply, broadband integrated access power supply. Emerson NetSure701A41 mechanical parameter structure: width 19 inches, height 6U; Size (mm): 483 (width) × 360 (deep) × 267 (high); Weight (Kg): 25 (excluding rectifier modules and modules).

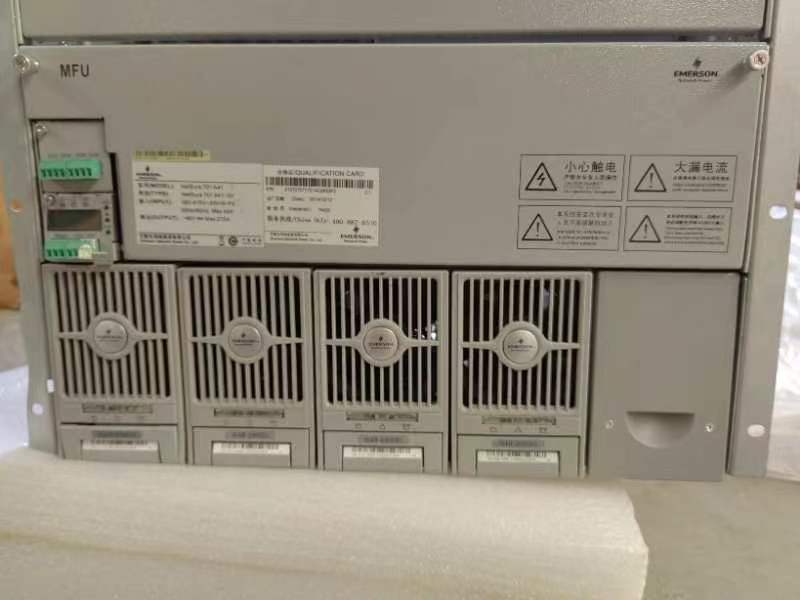

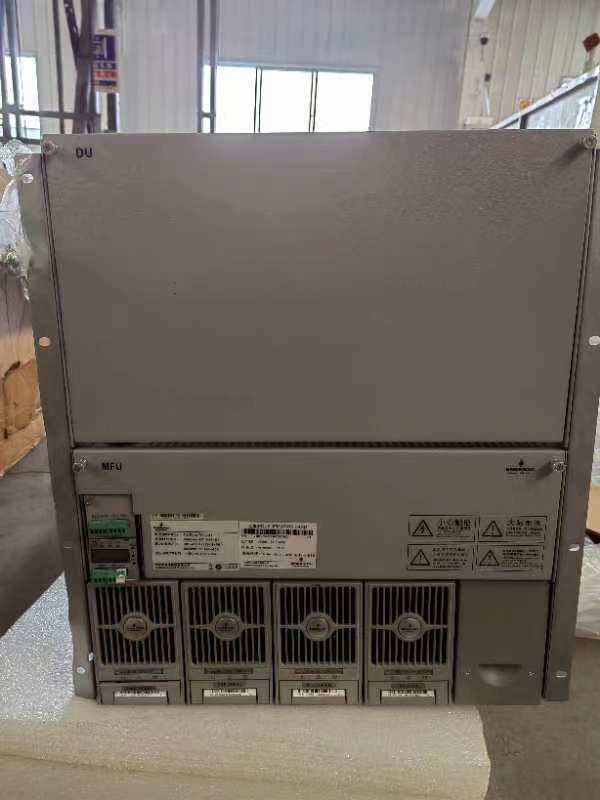

NETSURE701 A41 nominal output voltage: -48V, nominal output current: 200A or 250A. This system can adapt to a wide range of AC inputs and has functions such as intelligent battery management and remote environment. The Emerson NetSure701 A41 embedded communication power supply is a 6U high design box type power supply, mainly composed of 50A rectifier modules, modules, embedded subracks, and distribution circuits. It supports multiple installation methods, such as standard 19 inch rack or embedded cabinet installation
Emerson NetSure701A41 module M221S: LCD display with Ethernet port, RS232; M222S: LCD display, no network port, RS232. Alarm function: Provide audible and visual alarm for individual system faults, and report to the backend host at the same time. Historical alarm records can store 200 entries and have button operation recording function. 3 switch inputs; 4 switch value alarm outputs, expandable to 8 switch value alarm outputs. The sound and time of the alarm are controllable. Battery management functions: automatic float charging, intelligent charging current limiting management, and battery protection. Discharge test, 10 sets of battery test records, three charging methods: timed, fast, and constant current. Control functions: rectifier module on/off, rectifier module current limiting, current sharing, and voltage regulation; Battery pack equalization/floating charging/testing conversion, battery protection. Four remote functions: remote signal, remote control, telemetry, and remote adjustment. Energy saving function (optional): module automatic sleep function, efficient - ordinary module mixed insertion.
