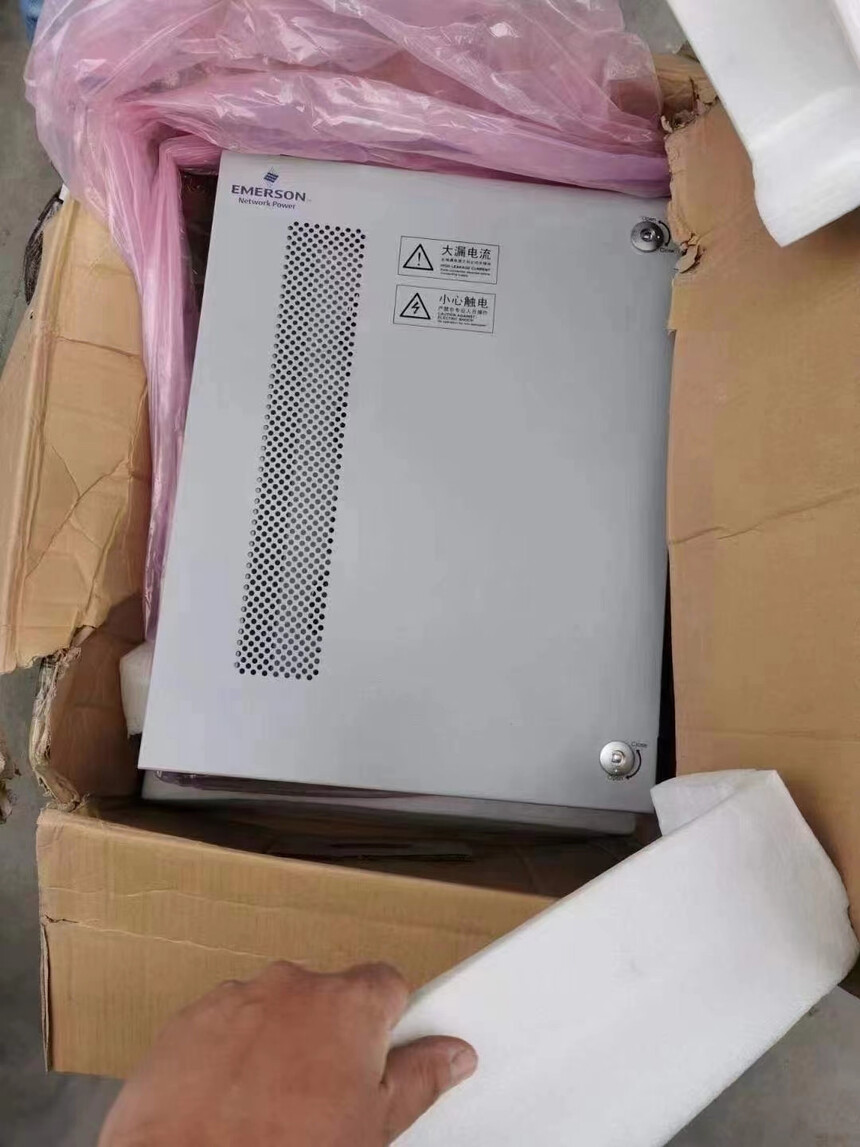

全新原包 艾默生NetSure201C46壁挂电源 内置2个R48-1000模块 ，高频开关电源

全新原包 艾默生NetSure201C46壁挂电源 内置2个R48-1000模块 ，高频开关电源

艾默生网络安全211C46
艾默生NetSure211 C46嵌入式电力系统是艾默生网络能源公司基于多年的开发和在线运营经验设计的一种高可靠性、高功率密度、高性能、全数字化的通信电力系统。可以满足3G、FTTx、数据通信设备、传输设备、接入设备等网络需求。
2.产品形象
3.系统特性
采用标准19英寸结构设计，具有良好的通用性
体积小、重量轻、嵌入式安装，节省机房面积和安装成本
全正面操作，便于维护
输入电压范围宽，对电网适应性强
整流模块工作温度范围广，环境适应性强
无损热插拔，在线维护，方便快捷
具备综合防雷设计，提供多种直流配电输出
配备全面的电池管理功能，有效提高电池寿命
提供RS232、网络端口、干触点等多种通信接口，具有灵活的组网和远程监控功能
通过CE、UL、TLC等多项国内外认证
3.系统配置
整流模块型号：R48-1000配置：4
监控模块型号：M522B、M523B或M221B标准配置：1
交流配电交流输入方式：L+N+PE/220V
直流配电7路负荷空气开关：4×16A/1P、2×32A/1P和1×50A/1P
蓄电池支路2路蓄电池空气开关：2×63A/1P
其他：2个数字输入接口，2个干触点输出接口，2种温度传感器接口

Emerson NetSure 211C46
The Emerson NetSure211 C46 embedded power system is a highly reliable, high-power density, high-performance, and fully digital communication power system designed by Emerson Network Energy Company based on years of development and online operation experience. It can meet network requirements such as 3G, FTTx, data communication equipment, transmission equipment, and access equipment.
2. Product image
3. System characteristics
Designed with a standard 19 inch structure, with good versatility
Small size, light weight, embedded installation, saving computer room area and installation costs
Full front operation for easy maintenance
Wide input voltage range and strong adaptability to the power grid
The rectifier module has a wide operating temperature range and strong environmental adaptability
Lossless hot swapping, online maintenance, convenient and fast
Equipped with comprehensive lightning protection design, providing multiple DC power distribution outputs
Equipped with comprehensive battery management functions, effectively improving battery life
Provide various communication interfaces such as RS232, network ports, and dry contacts, with flexible networking and remote monitoring functions
Passed multiple domestic and international certifications such as CE, UL, TLC, etc
3. System Configuration

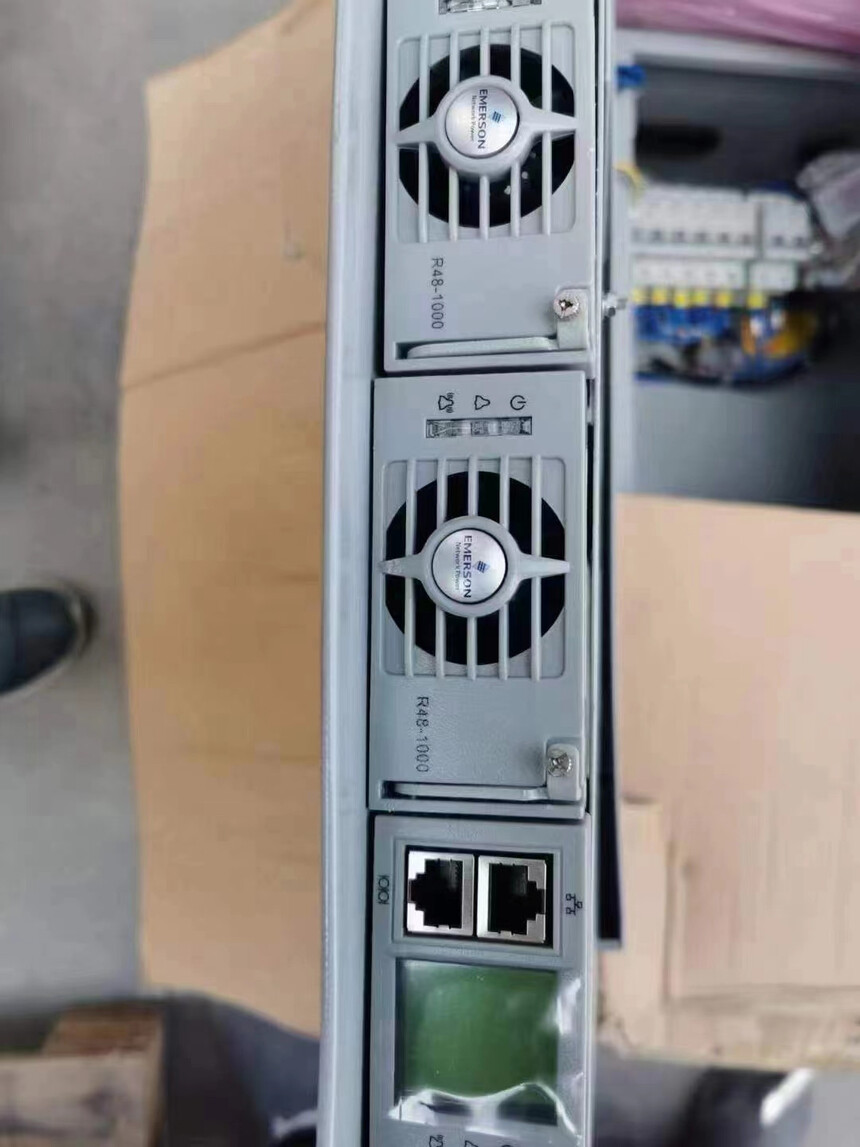

Rectifier module model: R48-1000 Configuration: 4
Monitoring module model: M522B, M523B, or M221B Standard configuration: 1
AC power distribution AC input mode: L+N+PE/220V
DC distribution 7-way load air switch: 4 × 16A/1P、2 × 32A/1P and 1 × 50A/1P
Battery branch 2-way battery air switch: 2 × 63A/1P，
Other: 2 digital input interfaces, 2 dry contact output interfaces, and 2 temperature sensor interfaces
